2015 Featured Agriculture Building of the Year
This is a great example of the best of post-frame for agriculture. Features such as a large hydraulic door, overhead doors, slide-door, side-light, acoustic ceiling liner combined with large and small shop areas and cold storage combine to create an extremely versatile building.

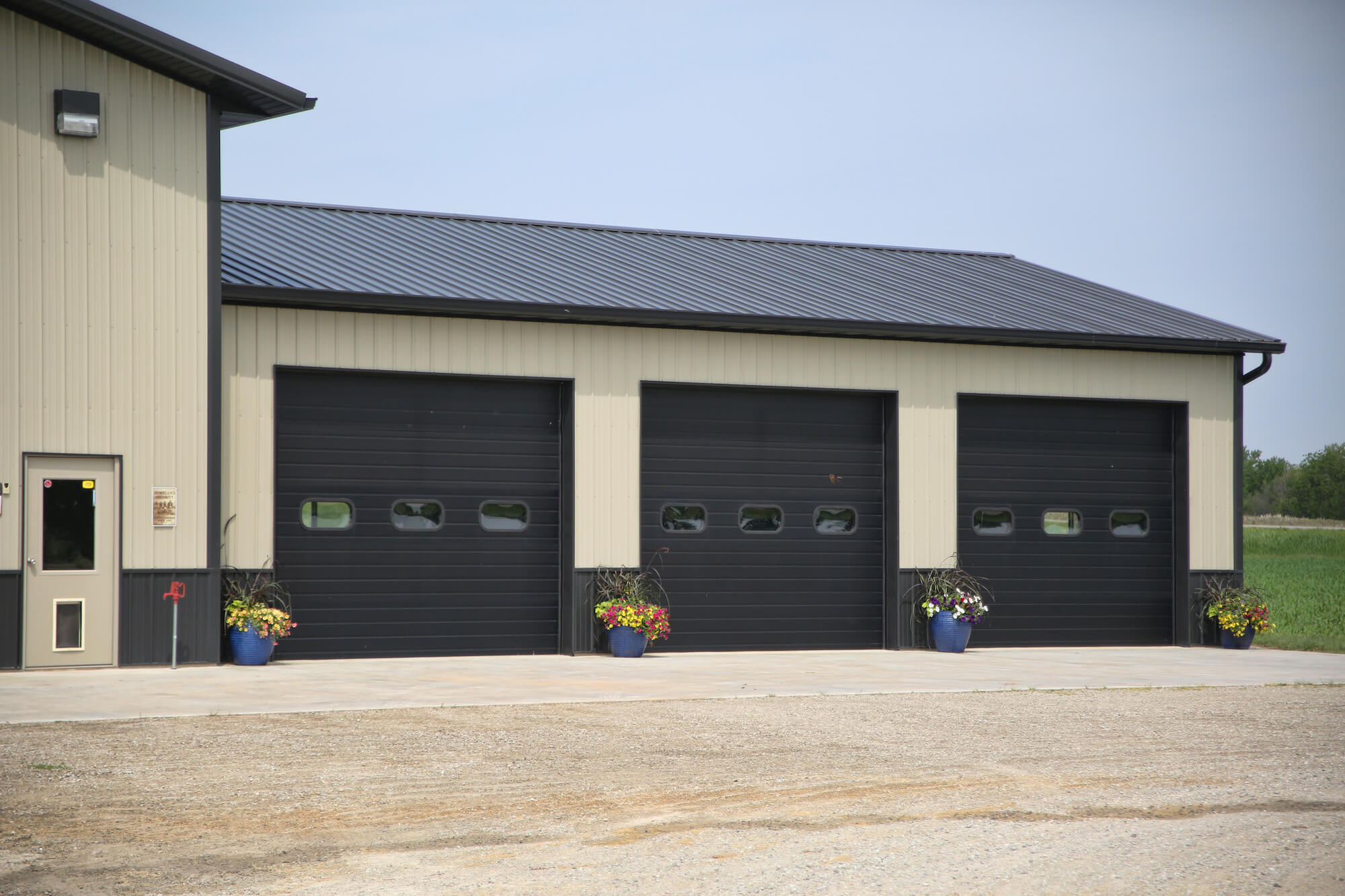

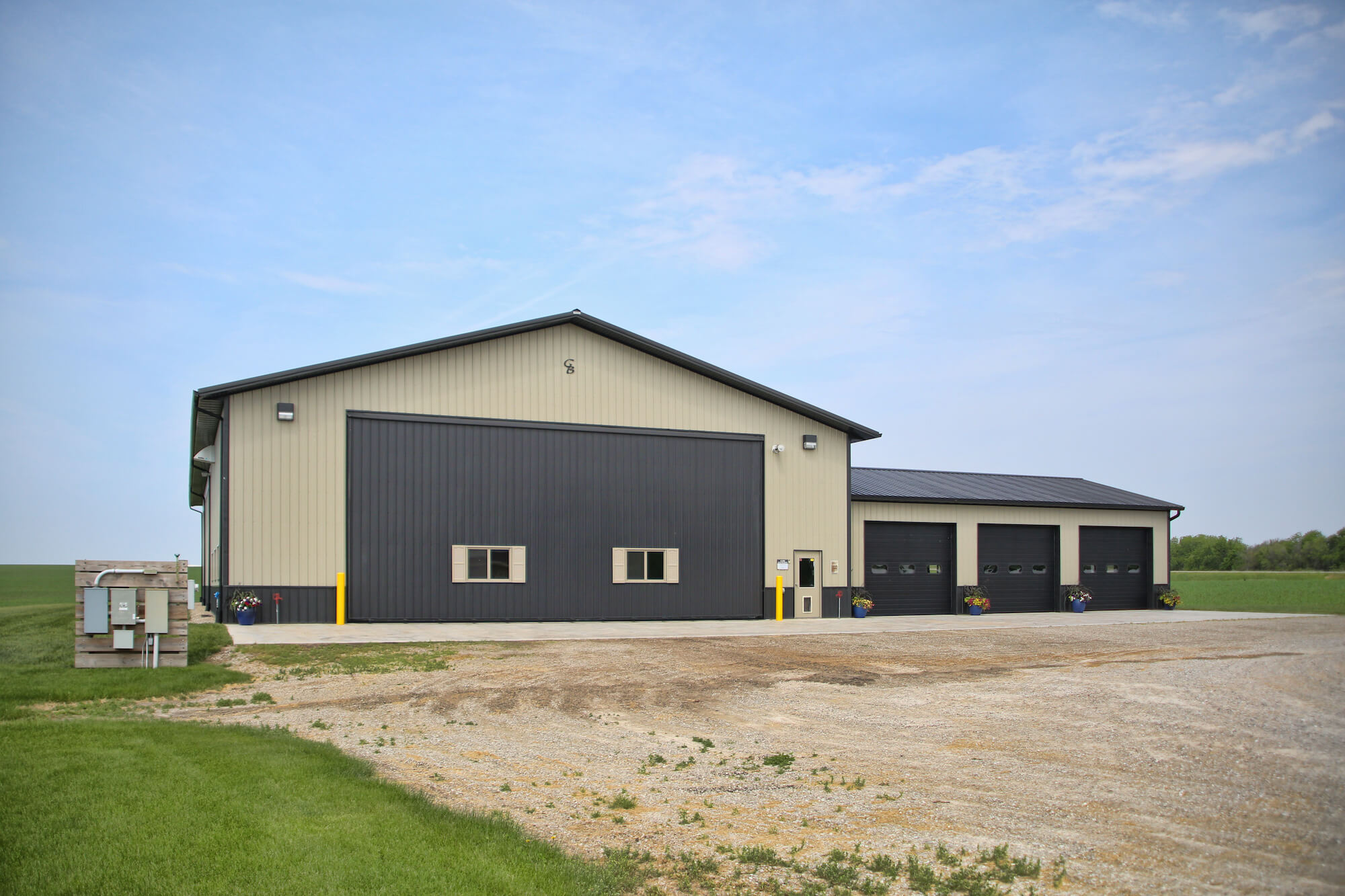

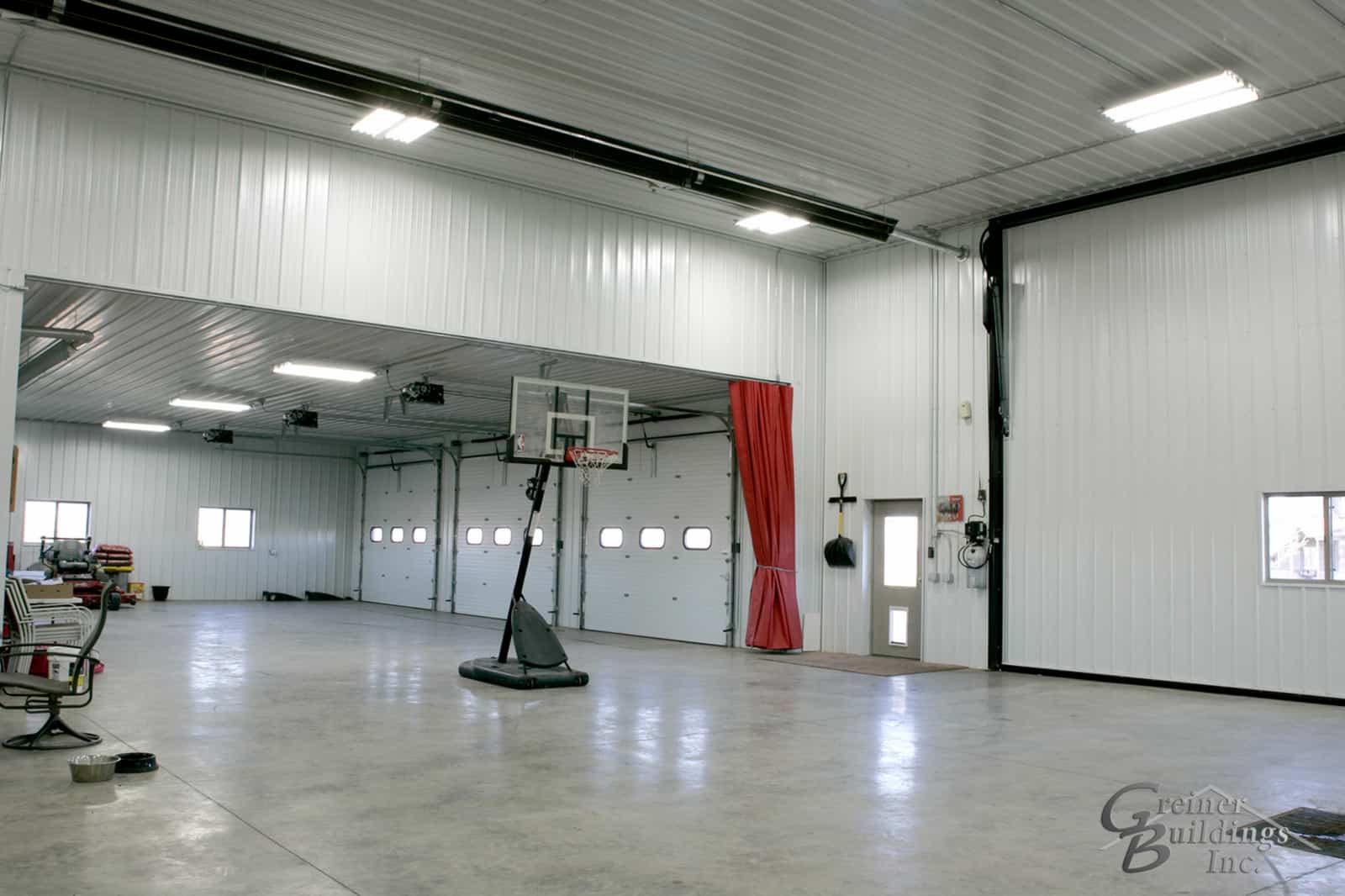

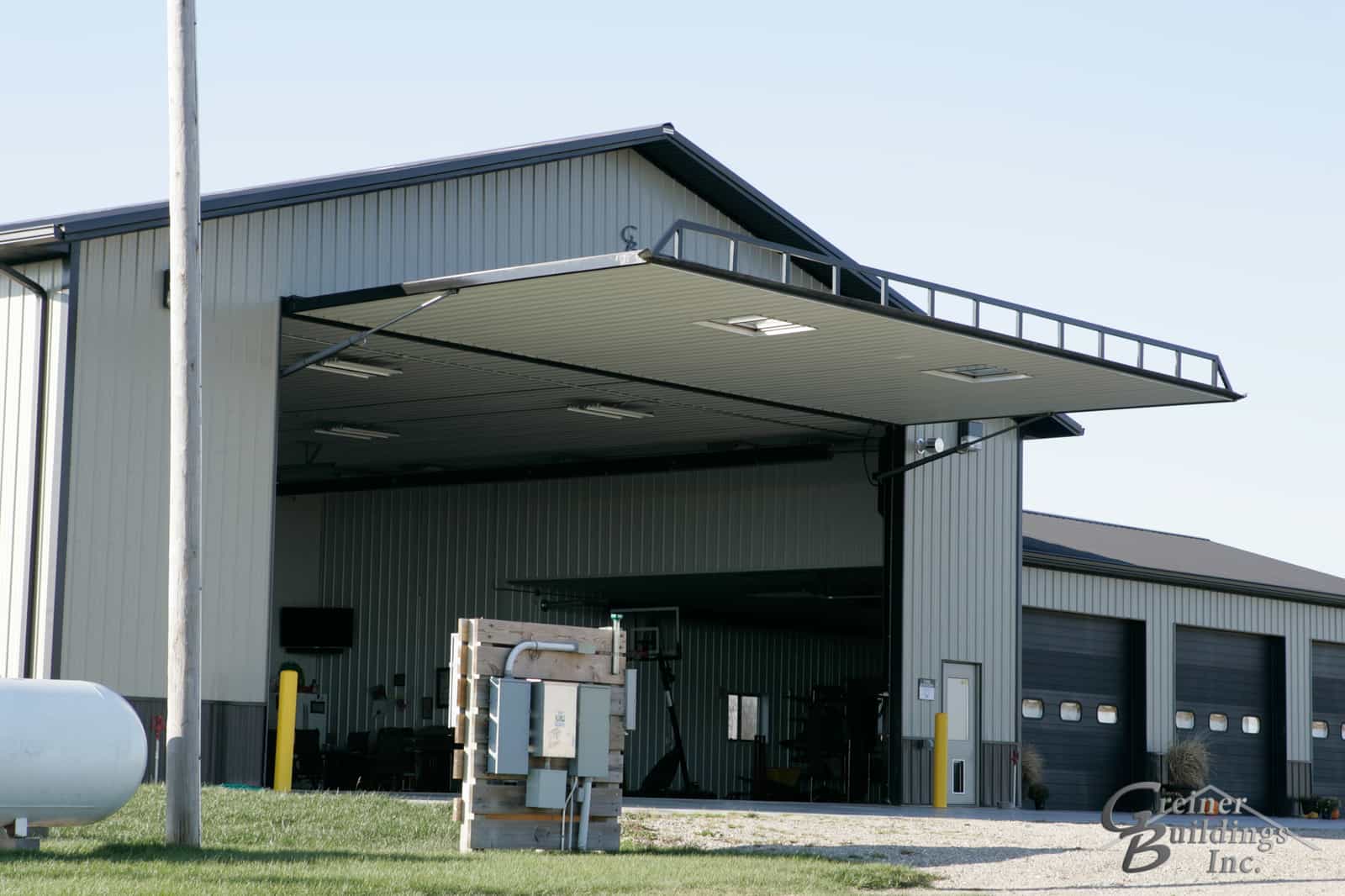

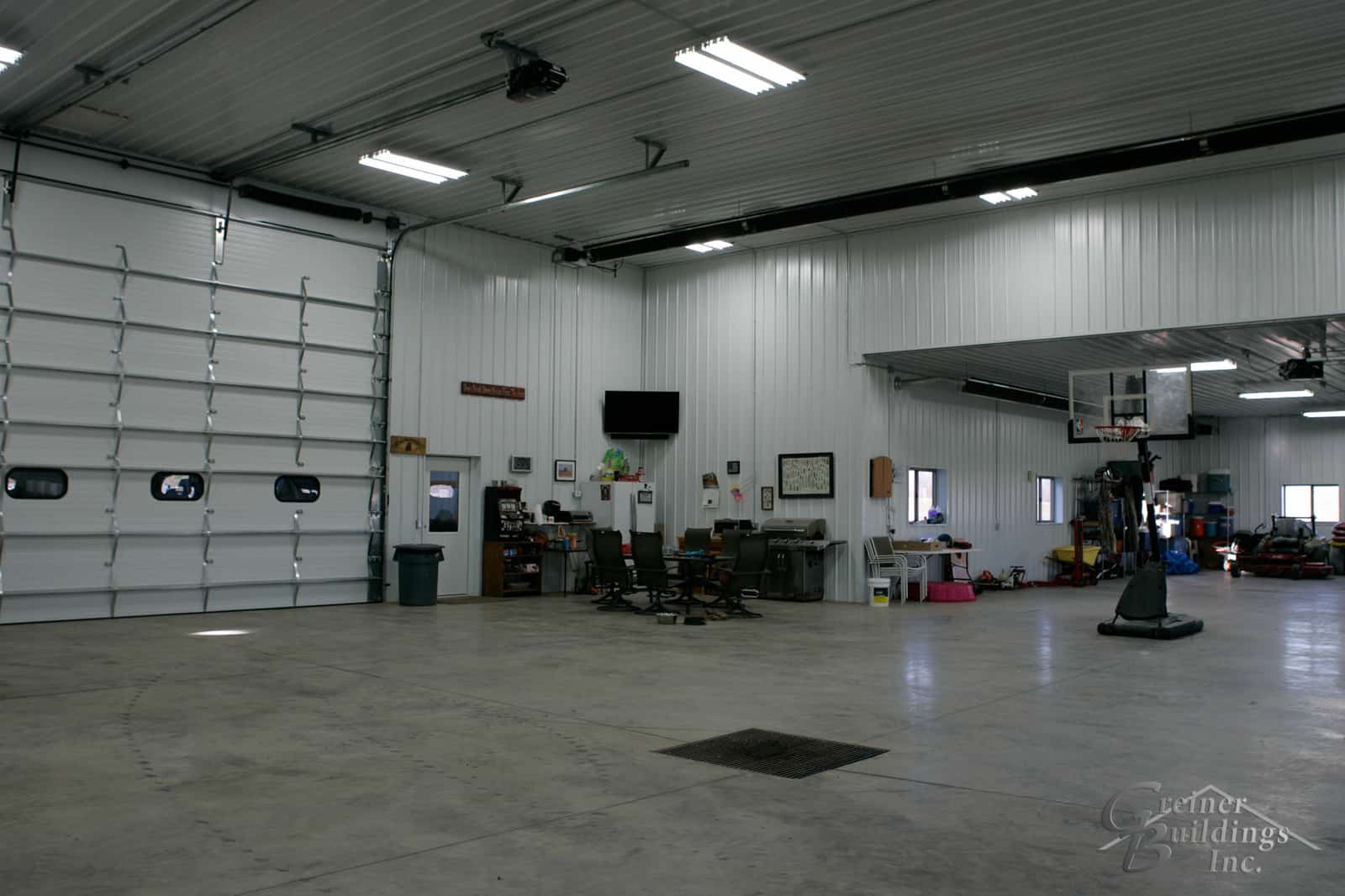

Three different large door styles truly allow for a building with many uses. The hydraulic door and a large overhead door allow for easy drive through access to the lined and insulated shop. A slide door gives the same large opening to the cold storage area off of the shop.
Post frame easily allowed for the flexibility to have different building section heights.
Size of Building
Width: 60 feet / 32 feet
Length: 128 feet / 48 feet
Total square feet: 9,216 feet
Specs
Post Size: 4-Ply 2×6
Post Spacing: 8′ on-center
Post Type: Glue laminated (Glu-lam) with Postsaver rot protective wrap
Foundation Type: Posts in ground with Insulated Trench Footing
Insulation: Walls: R-19 Anco Textrafine. Foundation: R-7.5. Celling: R-38 cellulose
Truss/Rafter Clear Span: 60 foot clear span wood trusses
Metal: 29 gauge G-90 with Kynar 500 paint
