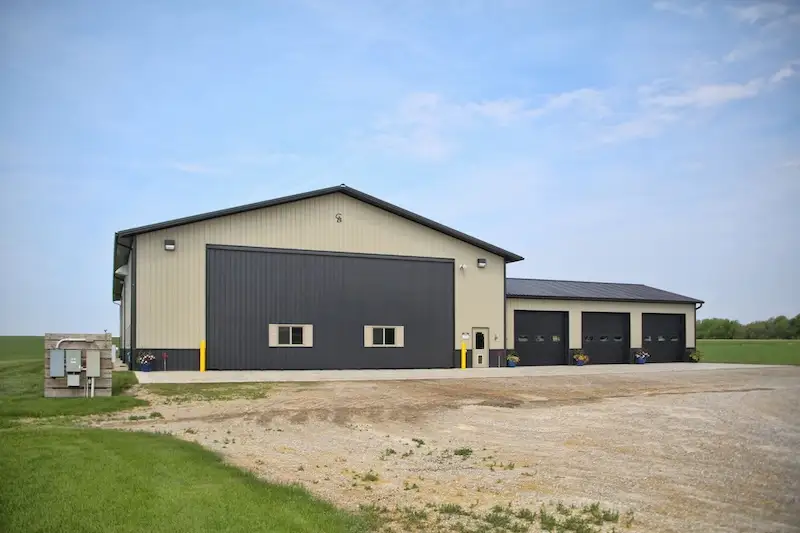

This is a great example of the best of post-frame for agriculture. Features such as a large hydraulic door, overhead doors, slide-door, side-light, acoustic ceiling liner combined with large and small shop areas and cold storage combine to create an extremely versatile building.

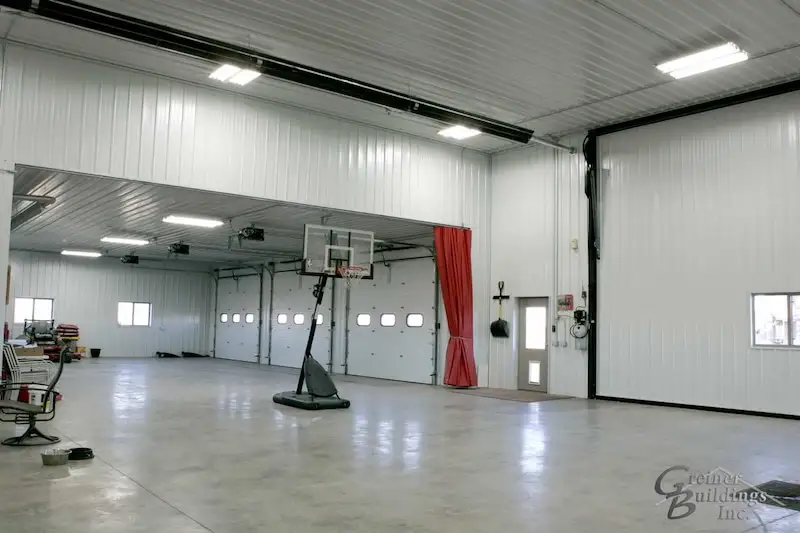

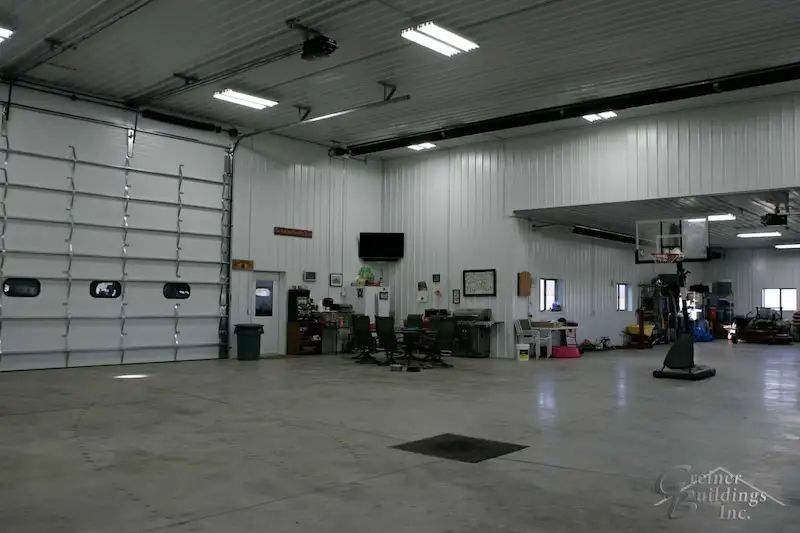

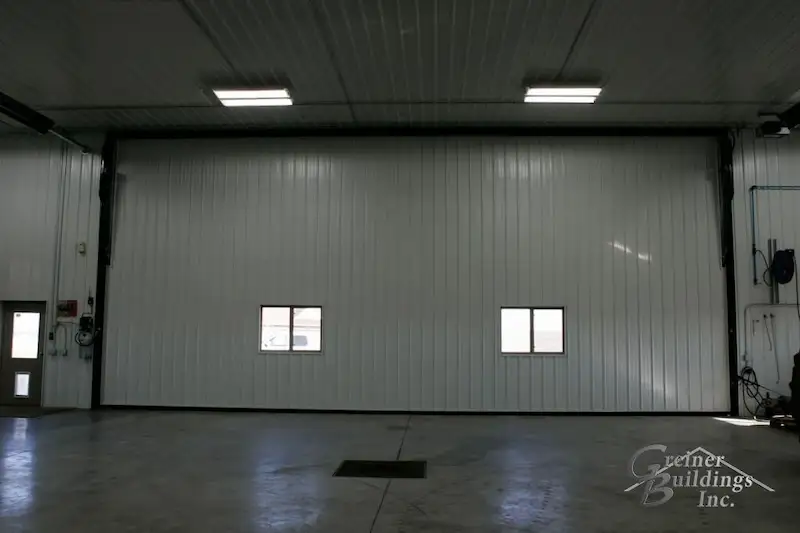

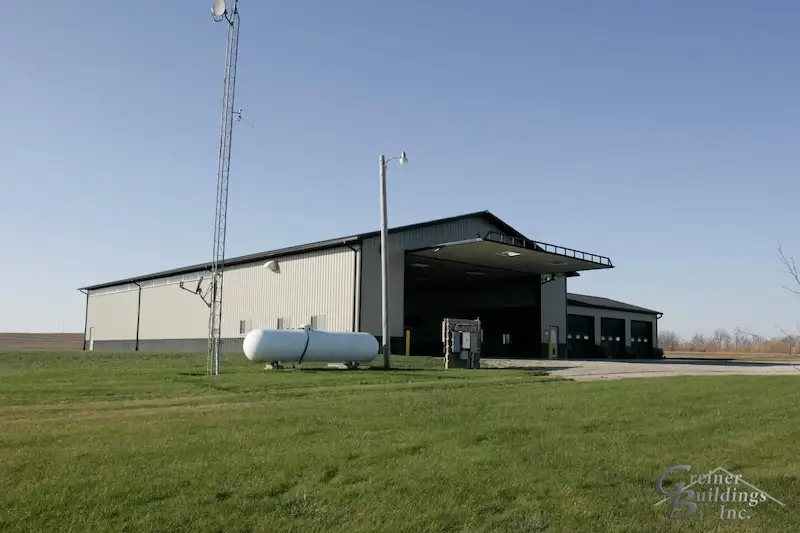

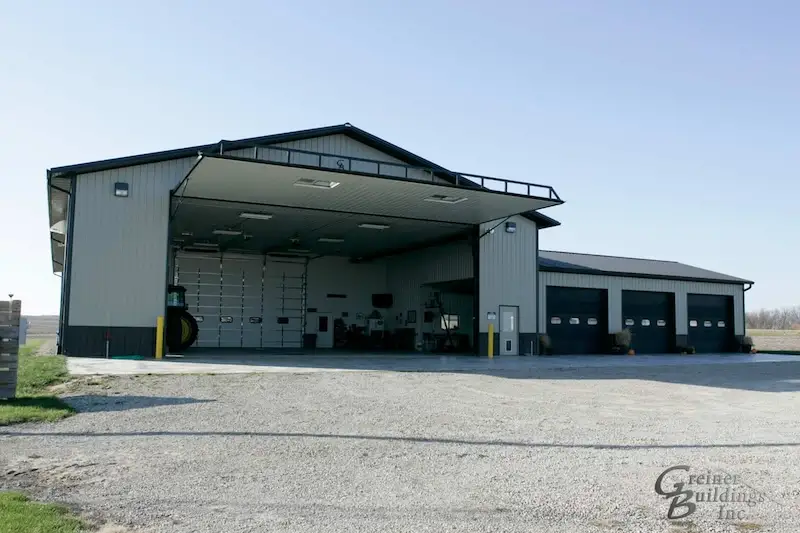

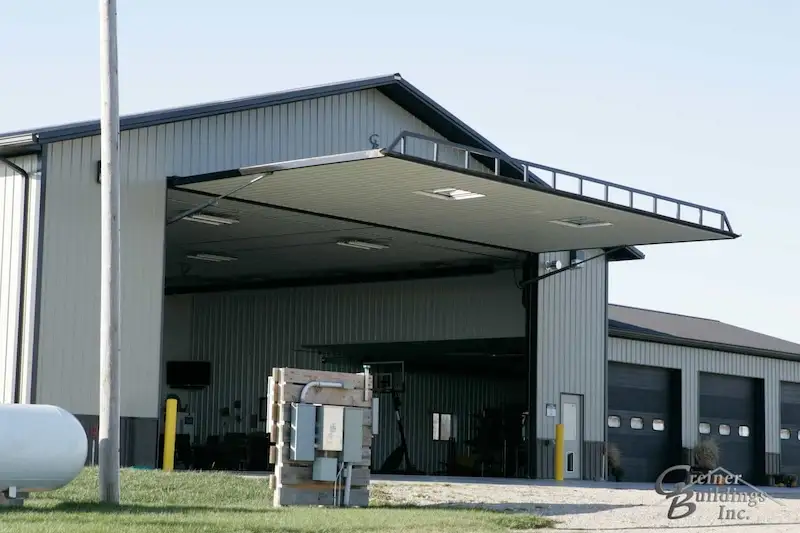

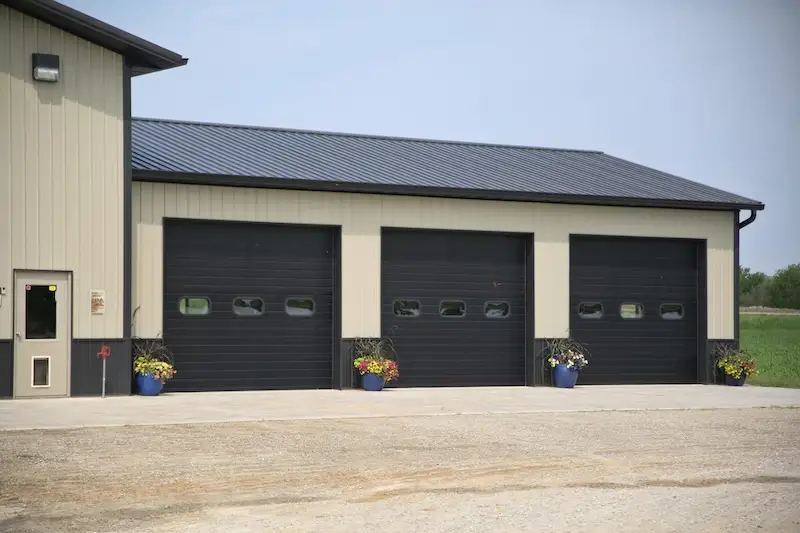

Three different large door styles truly allow for a building with many uses. The hydraulic door and a large overhead door allow for easy drive through access to the lined and insulated shop. A slide door gives the same large opening to the cold storage area off of the shop.

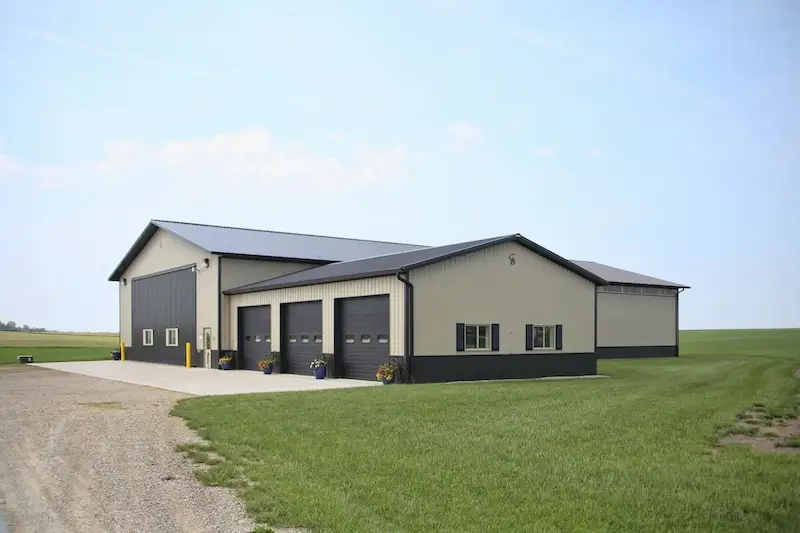

Post frame easily allowed for the flexibility to have different building section heights.
Width: 60 feet / 32 feet
Length: 128 feet / 48 feet
Total square feet: 9,216 feet
Post Size: 4-Ply 2×6
Post Spacing: 8′ on-center
Post Type: Glue laminated (Glu-lam) with Postsaver rot protective wrap
Foundation Type: Posts in ground with Insulated Trench Footing
Insulation: Walls: R-19 Anco Textrafine. Foundation: R-7.5. Celling: R-38 cellulose
Truss/Rafter Clear Span: 60 foot clear span wood trusses
Metal: 29 gauge G-90 with Kynar 500 paint
